- The system bridges the gap between traditional framing systems and low-rise curtain walls
- 6″ depth accommodates higher spans than conventional 4-1/2″ storefront framing systems

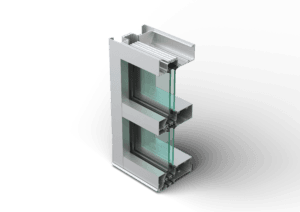

- The 3-in-1 series includes the non-thermal Trifab® 601, the single thermal break Trifab® 601T and the dual thermal break Trifab® 601UT
- Superior thermal performance
- Framing can be specified for glazing from either the inside or outside
Optional features
- High performance sill flashing
- Acoustical rating per AAMA 1801 and ASTM E 1425
- Project specific U-factors (See thermal charts in Architectural Detail Manual)
Product Applications
- Storefront, ribbon window or punched openings
- Single span
- Integrated entrance framing allowing Kawneer standard entrances or other specialty entrances to be incorporated
- Kawneer standard or GLASSvent® windows are easily incorporated
Hurricane Resistant
Find out more here.
Thermal Technology
Find out more here.
Trifab® VG 601/601T/601UT Framing System (Center Plane) - Architectural Detail Manual
6 MB
Trifab® VG 601/601T/601UT Framing System (Front Plane) - Architectural Detail Manual
2 MB
Système de cadre Trifab® VersaGlaze® 601/601T/601UT -Manuel de détails architecturaux
6 MB
Trifab® 601/601T/601UT Framing System - Flyer
5 MB
Storefront Framing Product Selection Guide
Trifab® 601 Framing System - Product Green Guide
168 KB
Trifab® 601T/601UT Framing System - Product Green Guide
277 KB
Trifab® Framing Systems and Storefront Framing Systems - EPD
1 MB
Trifab® VersaGlaze® 450/451/451T and Trifab® 601T Framing Systems - DECLARE Label
891 KB
Trifab® 451UT and 601UT Framing Systems - DECLARE Label
880 KB
Trifab® VersaGlaze® 450/451 and Trifab® 601 Framing Systems - MTS
532 KB
Trifab® VersaGlaze® 451T and Trifab® 601T Framing Systems - MTS
483 KB
Trifab® 451UT and 601UT Framing Systems - MTS
291 KB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
1 MB
Liquid Paint - Color Chart - Permafluor®
350 KB
Powder Paint - Color Charts - Permacoat®
Trifab® VersaGlaze® 601/601T/601UT Framing System - English
Trifab® VersaGlaze® 601/601T/601UT Framing System - French
Trifab® VersaGlaze® 601/601T/601UT Framing System - Spanish US
CENTER PLANE
Typical Outside Glazed Framing Details
Typical Inside Glazed Framing Details
Entrance Framing Details (with Surface Closers)
Entrance Framing Details (with Concealed Closers)
GLASSvent® Windows for Storefront Framing Details
Typical Outside Glazed Framing Details
Typical Inside Glazed Framing Details
Entrance Framing Details (with Surface Closers)
Entrance Framing Details (with Concealed Closers)
GLASSvent® UT Windows Details
FRONT PLANE
Typical Outside Glazed Framing Details
Typical Inside Glazed Framing Details
Entrance Framing Details (with Surface Closers)
Entrance Framing Details (with Concealed Closers)
GLASSvent® UT Windows Details
Typical Framing (Outside Glazed)
Typical Framing (Outside Glazed) "Glass Stops Up"
Typical Framing (Inside Glazed)
Heavy Weight & Expansion Mullions
GLASSvent Wdw with Framing Details (Outside Glazed)
GLASSvent Wdw with Framing Details (Outside Glazed) "Glass Stops Up"
GLASSvent Wdw with Framing Details (Inside Glazed)
8225TL Wdw with Framing Details (Outside Glazed)
8225TL Wdw with Framing Details (Outside Glazed) "Glass Stops Up"
8225TL Wdw with Framing Details (Inside Glazed)
Optional Glazing Adapters
Trims, Sill for Vestibule and Splice Sleeve
Typical Framing (Outside Glazed)
Typical Framing (Outside Glazed) "Glass Stops Up"
Typical Framing (Inside Glazed)
Heavy Weight & Expansion Mullions
GLASSvent Wdw with Framing Details (Outside Glazed)
GLASSvent Wdw with Framing Details (Outside Glazed) "Glass Stops Up"
GLASSvent Wdw with Framing Details (Inside Glazed)
8225TL Wdw with Framing Details (Outside Glazed)
8225TL Wdw with Framing Details (Outside Glazed) "Glass Stops Up"
8225TL Wdw with Framing Details (Inside Glazed)
Optional Glazing Adapters
Trims, Sill for Vestibule and Splice Sleeve
Typical Framing (Outside Glazed)
Typical Framing (Outside Glazed) "Glass Stops Up"
Typical Framing (Inside Glazed)
GLASSvent Wdw with Framing Details (Outside Glazed)
GLASSvent Wdw with Framing Details (Outside Glazed) "Glass Stops Up"
GLASSvent Wdw with Framing Details (Inside Glazed)
8225TL Wdw with Framing Details (Outside Glazed)
8225TL Wdw with Framing Details (Outside Glazed) "Glass Stops Up"
8225TL Wdw with Framing Details (Inside Glazed)
Optional Glazing Adapters
Stool Trims, Brake Metal and Splice Sleeve
Typical Framing (Outside Glazed)
Typical Framing (Inside Glazed)
Optional 1/4" Infill Adapters
BIMC074A_Kawneer-Trifab601TVG Screw Spline (Front Set).pdf
BIMC074A_Kawneer-Trifab601TVG Screw Spline (Front Set).rvt
BIMC074B_Kawneer-Trifab601TVG Shear Block (Front Set).pdf
BIMC074B_Kawneer-Trifab601TVG Shear Block (Front Set).rvt
BIMC074C_Kawneer-Trifab601TVG SSG (Front Set).pdf
BIMC074C_Kawneer-Trifab601TVG SSG (Front Set).rvt
BIMC074D_Kawneer-Trifab601TVG Stick (Front Set).pdf
BIMC074D_Kawneer-Trifab601TVG Stick (Front Set).rvt
BIMC074E_Kawneer-Trifab601UTVG Screw Spline (Front Set).pdf
BIMC074E_Kawneer-Trifab601UTVG Screw Spline (Front Set).rvt
BIMC074F_Kawneer-Trifab601UTVG Shear Block (Front Set).pdf
BIMC074F_Kawneer-Trifab601UTVG Shear Block (Front Set).rvt
BIMC074G_Kawneer-Trifab601UTVG SSG (Front Set).pdf
BIMC074G_Kawneer-Trifab601UTVG SSG (Front Set).rvt
BIMC074H_Kawneer-Trifab601UTVG Stick (Front Set).pdf
BIMC074H_Kawneer-Trifab601UTVG Stick (Front Set).rvt
BIMC074J_Kawneer-Trifab601VG Screw Spline (Front Set).pdf
BIMC074J_Kawneer-Trifab601VG Screw Spline (Front Set).rvt
BIMC074K_Kawneer-Trifab601VG Shear Block (Front Set).pdf
BIMC074K_Kawneer-Trifab601VG Shear Block (Front Set).rvt
BIMC074M_Kawneer-Trifab601VG SSG (Front Set).pdf
BIMC074M_Kawneer-Trifab601VG SSG (Front Set).rvt
BIMC074N_Kawneer-Trifab601VG Stick (Front Set).pdf
BIMC074N_Kawneer-Trifab601VG Stick (Front Set).rvt
