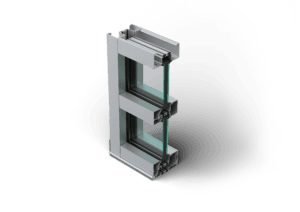

- Trifab® 451UT framing system is 4-1/2″ deep with a 2″ sightline
- Center plane glass application
- Flush glazed from either the inside or outside
- Screw Spline fabrication
- Screw Spline pre-glazed option
- Dual Isolock® lanced and debridged thermal break
- Infill options up to 1-1/8″ thickness
- Anodized finishes in four choices
- Painted finishes in standard and custom choices
Optional Features
- High performance flashing
- Acoustical rating per AAMA 1801 and ASTM E 1425
- Project specific U-factors (see thermal charts in Architectural Detail Manual)
- Pre-glaze Option Features*
- Tested solution with installation instructions enables shop fabrication and reduces field labor
- Vertical mullions with 1/4″ reveal provide uniform aesthetics
- High-performance sill flashing and clip design reduces installation time
- Composite end jamb allows for ease of installation of the last bay
- Trifab® 451/451T/451UT Framing Systems provide the right thermal performance for your project
- View our pre-glaze option flyer here
*For Trifab® 451/451T/451UT Framing System center set screw spline assembly applications only.
Product Applications
- Storefront, Ribbon Window or Punched Openings
- Single span
- Integrated entrance framing allowing Kawneer standard entrances or other specialty entrances to be incorporated
- Kawneer standard or GLASSvent® windows are easily incorporated
Thermal Technology
Find out more here.
Blast Resistant
Find out more here.
Trifab® 451UT Framing System - Architectural Detail Manual
