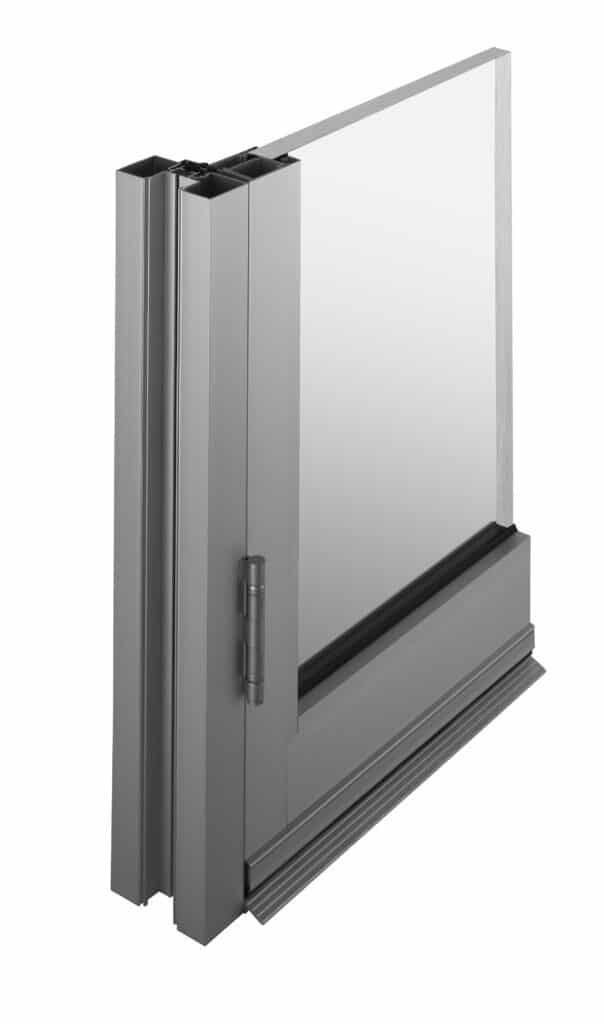

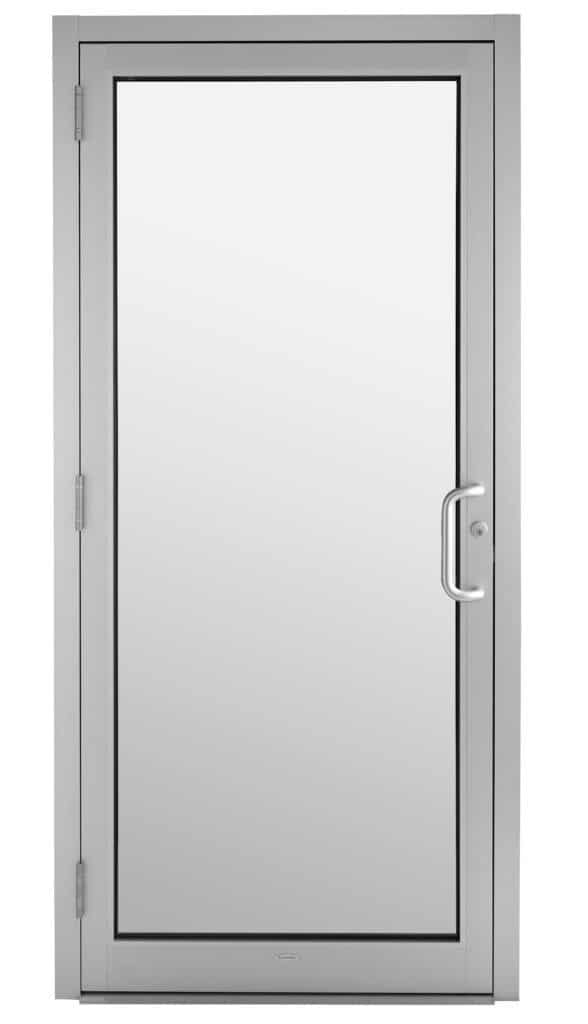

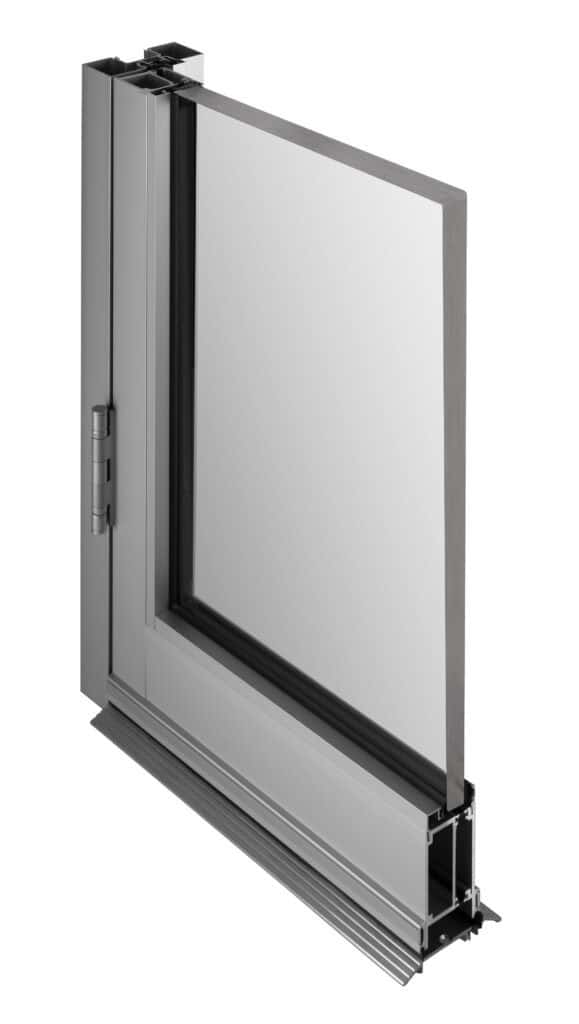

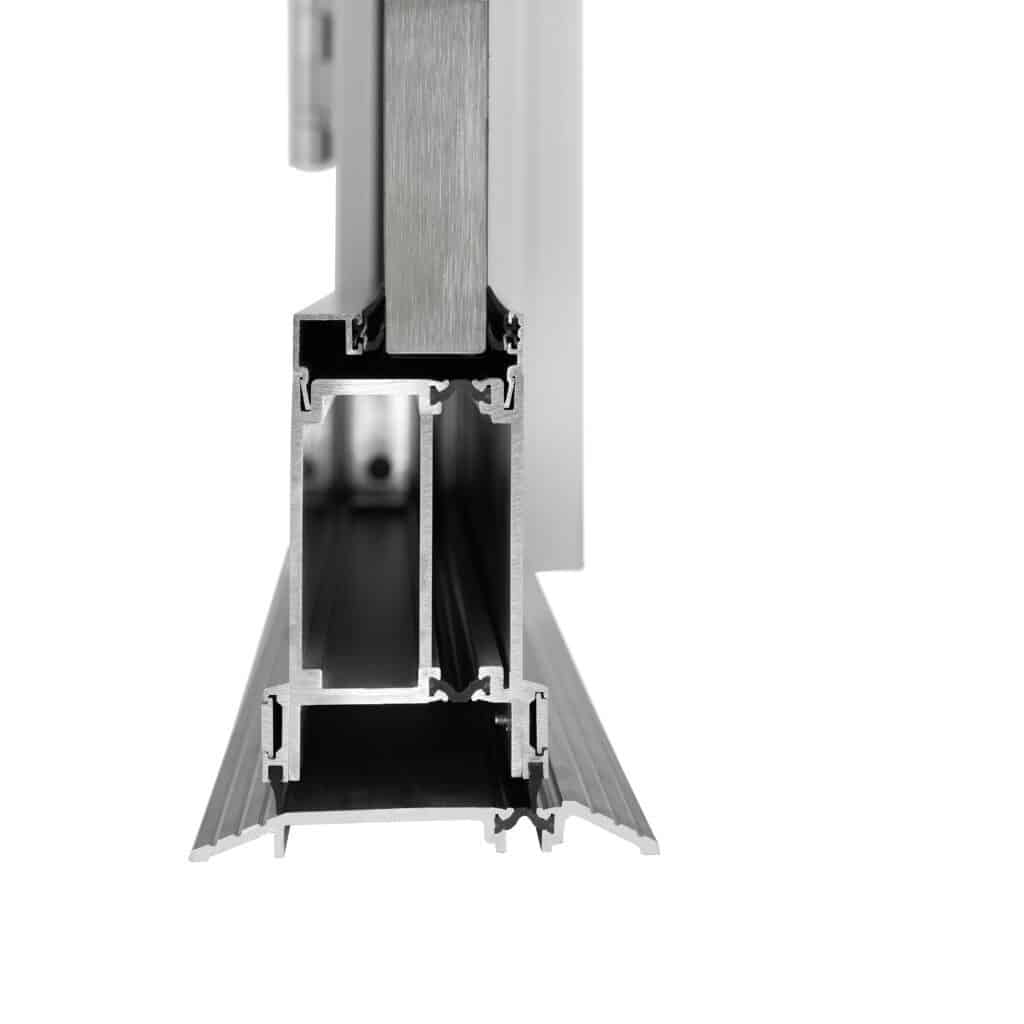

AA®250/425 Thermal Entrances

AA®250 narrow stile has 2-1/2″ (63.5mm) vertical stiles, 2-1/2″ (63.5mm) top rail and 3-7/8″ bottom rail
AA®425 wide stile has 4-1/4″ (108mm) vertical stiles, 4-1/4″ (108mm) top rail and 6-1/2″ (165.1mm) bottom rail
Door is 2-1/4″ (57.2mm) deep
Door has 1/8″ (3.2mm) typical wall thickness
Dual welded corner construction
Single-acting
Offset pivots, butt hinges or continuous geared hinges
Surface mounted or concealed closers
MS locks or exit device hardware
Architect’s classic push/pulls
1″ insulated glass infill
Meeting stile astragal has dual pile weathering with polymeric fin
Sealair bulb polymeric weatherstripping and pile weathering with polymeric fin in door frame

Optional Features

Numerous push/pull finishes
Variety of top, bottom and cross rails
Two color finish capability

Product Applications

AA®250 – engineered for thermal efficiency in moderate-traffic applications such as offices, stores and apartment buildings

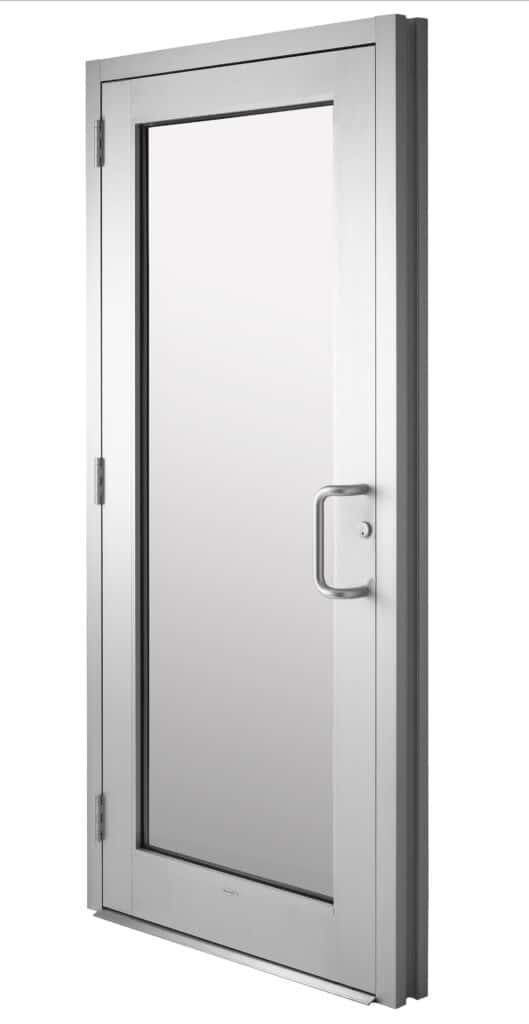

AA®425 – engineered for thermal efficiency and added strength for schools, institutions and other high-traffic applications

Hardware
Kawneer offers a wide variety of entrance hardware to meet your specific job needs:

Pivots and Hinges
Locks and Latches
Exit Devices
Door Closers
Thresholds
Push/Pull

Hurricane Resistant

Find out more here.

Thermal Technology

Find out more here.

Blast Resistant

Find out more here.

AA®250/425 Thermal Entrance Doors - Architectural Detail Manual

3 MB

[Download]

Entrées thermiques AA®250/425 - Manuel de détails architecturaux

3 MB

[Download]

Product Selection Guide Standard Entrances

2 MB

[Download]

AA®250/425 Thermal Entrance Doors - Flyer

1 MB

[Download]

Paneline® MEL (Motorized Electronic Latch) Exit Device Flyer

870 KB

[Download]

Paneline® Concealed Rod Exit Device Flyer

844 KB

[Download]

Entrance Hardware

2 MB

[Download]

Quincaillerie d'entrée

2 MB

[Download]

Anodized and Painted Aluminum Extrusions - EPD

765 KB

[Download]

Finishes Brochure

5 MB

[Download]

Finishes Information - Architectural Detail Manual

238 KB

[Download]

Anodize Finishes - Color Chart

82 KB

[Download]

Liquid Paint - Color Chart - Permadize®

1 MB

[Download]

Liquid Paint - Color Chart - Permafluor®

350 KB

[Download]

AA®250/425 Thermal Entrances - English

[docx]

[pdf]

AA®250/425 Thermal Entrances - French

[docx]

[pdf]

Download All

[ZIP]

AA®250 Thermal Entrance Doors with 1 inch infill

[dwg]

[dxf]

AA®425 Thermal Entrance Doors with 1 inch infill

[dwg]

[dxf]

Optional Details (Bottom Rails-Cross Rails)

[dwg]

[dxf]

Download All

[ZIP]

Doors-Kawneer-AA250__AA425.rvt

[RVT]

Kawneer AA250 AA425 Instructions.docx

[DOCX]

While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding. Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.

Arconic’s SDS database provides PDF files of safety information on specific materials. The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.

SDS # DESCRIPTION / TITLE
1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints

1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals

1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products

Search Arconic’s SDS database for safety information on specific materials.
