Curtain Wall

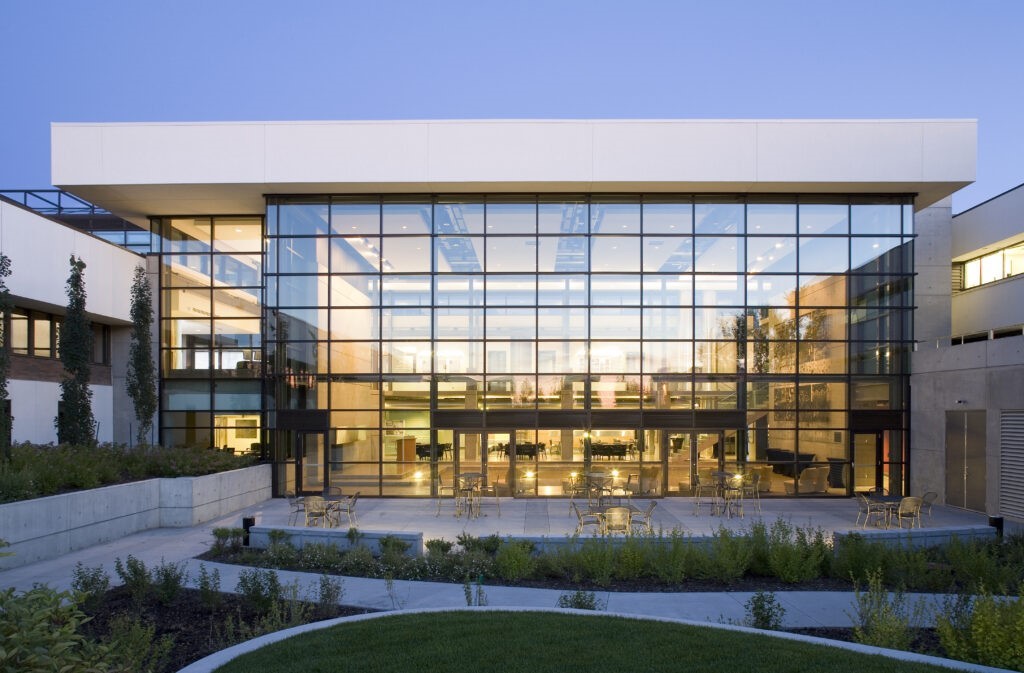

7500 Wall® Curtain Wall System

The 7500 Wall® Curtain Wall System performs in all climates. The system enhances energy efficiency, offers design flexibility and features IsoWeb® thermal break technology that can be combined with double- or triple-pane glazing infills.

  • 2-1/2″ (63.5mm) sightline
  • 6-5/16″ (160.3mm) or 7-5/16″ (185.7mm) depths
  • Ultra-thermal performance
  • Outside glazed
  • Incorporates high performance IsoWeb® thermal break technology
  • Accommodates various infills, including triple-pane insulating glass units
  • Fully pressure equalized, rain screen design
  • Excellent air and water performance
  • Profile is 2-1/2″ (63.5mm)
  • U-factor up to 0.98 W/m² x °C (Equivalent US units are 0.17 BTU/hr x ft² x °F)
  • Door adapters for 260, 360 and 560 Insulclad® Thermal Entrances

Optional Features

  • Steel reinforcing available
  • Corner mullions
  • Profit$Maker® Plus die sets available
  • Dual-color option

Product Applications

  • Ideal for low- to mid-rise applications
  • Integrates with Kawneer entrances and windows

Thermal Technology

Find out more here.

7500 Wall® Curtain Wall - Architectural Detail Manual
3 MB
Système de mur-rideau 7500 Wall® - Manuel de détails architecturaux
3 MB
7500 Wall® Curtain Wall - Flyer
1 MB
Curtain Wall Product Selection Guide
753 KB
Traditional Curtain Wall/Aluminum Curtain Wall Systems - EPD
617 KB
Finishes Brochure
5 MB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
1 MB
Liquid Paint - Color Chart - Permafluor®
350 KB
7500 Wall® Curtain Wall System - English
7500 Wall® Curtain Wall System - French

Download All
Typical Details
Corner Details
Splice Details

Download All
Typical Details
Corner Details
Splice Details
Download All
kawneer-7500_6-516_21011.rvt
kawneer-7550_7-516_21012.rvt

While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding.  Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.

Arconic’s SDS database provides PDF files of safety information on specific materials.  The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.

SDS # DESCRIPTION / TITLE
1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints

1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals

1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products



Search Arconic’s SDS database for safety information on specific materials.
